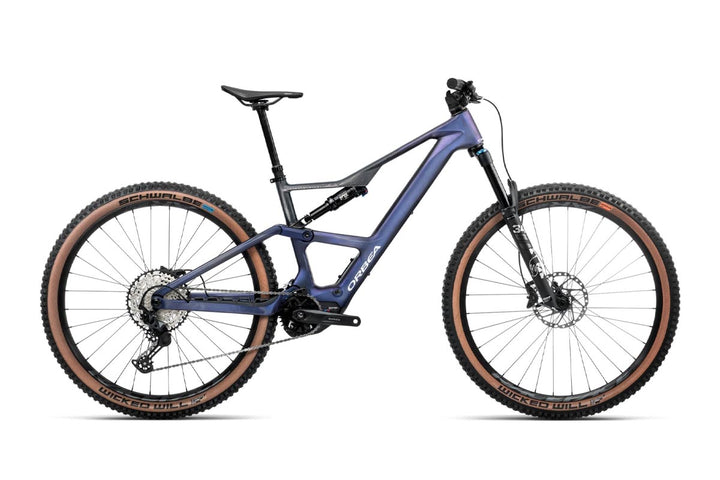

2025 Orbea Rise SL M20 420W
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
Free shipping or in-store pickup
2025 Orbea Rise SL M20 420W
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
$7,099.00
Key Features
- Wheel Size: 29"
- Front Travel: 140mm
- Rear Travel: 140mm
- Frame Material: Carbon
Specs
- Orbea Rise SL OMR 2025, 140mm travel, 29" wheels, Concentric Boost 12x148 frame
- Fox 34 Float Performance 140 Grip 3-Pos QR15x110 fork
- Fox Float Performance 2-Pos Evol LV custom tune 210x50mm shock
- Orbea Internal 420Wh battery
- Shimano EP600 RS Gen2 MC motor
- Orbea 2.Generation eBike Smart charger 42V/2-4A charger
- EN600-L remote
- e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine chainring
- Shimano Steps EM600 cranks
- Shimano SLX M7100 I-Spec EV shifter
- Shimano CS-M7100 10-51t 12-Speed cassette
- Shimano SLX M7100 SGS Shadow Plus derailleur
- Shimano M6100 chain
- OC Mountain Control MC31, Rise20, Width 800 handlebar
- OC Mountain Control MC20, 0º stem
- Shimano M6100 Hydraulic Disc brakes
- Shimano RT64 Rotors 180mm front / 180mm rear rotors
- Race Face AR 30c Tubeless Ready wheels
- Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown tires
- OC Mountain Control MC22, 31.6mm, Dropper seat post
- Fizik Terra Ridon X5 145mm saddle
Learn More About the 2025 Orbea Rise SL M20 420W
Frame & Suspension
- Orbea Rise SL OMR 2025 carbon frame with 140mm travel and Concentric Boost 12x148 design.
- Fork: Fox 34 Float Performance, 140mm travel, Grip 3-Pos damper, QR15x110.
- Shock: Fox Float Performance, 2-Pos Evol LV custom tune, 210x50mm.
eMTB System
- Motor: Shimano EP600 RS Gen2 MC, tuned for smooth, natural power delivery.
- Battery: Orbea Internal 420Wh battery for extended trail rides.
- Remote & Display: EN600-L remote for easy assist control.
- Charger: Orbea 2nd Generation eBike Smart Charger (42V/2-4A).
Drivetrain & Components
- Crankset: Shimano Steps EM600 with ethirteen Helix Core espec Direct Mount 32T chainring.
- Shifter: Shimano SLX M7100 I-Spec EV for crisp, reliable shifting.
- Cassette: Shimano CS-M7100 12-speed, 10-51T wide-range gearing.
- Derailleur: Shimano SLX M7100 SGS Shadow Plus for smooth gear changes.
- Chain: Shimano M6100 for lasting durability.
- Chainguide: Orbea eBike chainguide to keep your chain secure on rough terrain.
Brakes & Control
- Brakes: Shimano M6100 Hydraulic Disc for confident stopping power.
- Rotors: Shimano RT64 180mm front & rear for consistent braking performance.
- Handlebar: OC Mountain Control MC31, 800mm wide, 20mm rise.
- Stem: OC Mountain Control MC20, 0º for responsive handling.
Wheels & Tires
- Wheels: Race Face AR 30c Tubeless Ready for durability and strength.
- Tires: Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race with Speed Grip & Addix compound for superior traction.
Finishing Touches
- Seatpost: OC Mountain Control MC22 dropper post (31.6mm) for on-the-fly adjustments.
- Saddle: Fizik Terra Ridon X5 (145mm) for all-day comfort.
The 2025 Orbea Rise SL M20 is a lightweight, high-performance eMTB built for epic adventures with its Shimano EP600 motor, refined suspension, and premium components.
Geometry Data By Frame Size
Measurements primarily in millimeters (mm) unless otherwise noted.
| Size | S - High | S - Low | M - High | M - Low | L - High | L - Low | XL - High | XL - Low |
|---|---|---|---|---|---|---|---|---|
| Seat Tube (C-T) | 405 | 405 | 415 | 415 | 430 | 430 | 460 | 460 |
| Top Tube (Eff) | 569 | 570 | 595 | 614 | 622 | 620 | 637 | 647 |
| Head Tube | 95 | 95 | 100 | 100 | 110 | 110 | 120 | 120 |
| Chainstay | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 |
| BB Drop | 26 | 34 | 26 | 34 | 26 | 34 | 26 | 34 |
Detailed Specs By Build Kit
| Build | Rise LT M10 20MPH | Rise LT M-Team 20MPH | Rise SL M10 20MPH | Rise SL M-LTD 20MPH |
|---|---|---|---|---|
| Frame | Orbea Rise LT OMR 2025, 150mm travel, 29" wheels, Concentric Boost 12x148 | Orbea Rise LT OMR 2025, 150mm travel, 29" wheels, Concentric Boost 12x148 | Orbea Rise SL OMR 2025, 140mm travel, 29" wheels, Concentric Boost 12x148 | Orbea Rise SL OMR 2025, 140mm travel, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 36 Float Factory 160 Grip X QR15x110 Kashima | Fox 36 Float Factory 160 Grip X QR15x110 Kashima | Fox 34 Float Factory 140 Grip X QR15x110 Kashima | Fox 34 Float Factory 140 Grip X QR15x110 Kashima |
| Shock | Fox Float X Factory 2-Pos Adjust Evol LV Kashima custom tune 210x55mm | Fox DHX Factory 2-Pos Adjust custom tune 210x55mm | Fox Float Factory 2-Pos Adjust Evol LV Kashima custom tune 210x50mm | Fox Float Factory 2-Pos Adjust Evol LV Kashima custom tune 210x50mm |
| Headset | Alloy 1-1/2", Black Oxidated Bearing | Alloy 1-1/2", Black Oxidated Bearing | Alloy 1-1/2", Black Oxidated Bearing | Alloy 1-1/2", Black Oxidated Bearing |
| Battery | Orbea Internal 420Wh | Orbea Internal 420Wh | Orbea Internal 420Wh | Orbea Internal 420Wh |
| Motor | Shimano EP801 RS Gen2 MC | Shimano EP801 RS Gen2 MC | Shimano EP801 RS Gen2 MC | Shimano EP801 RS Gen2 MC |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A | Orbea 2.Generation eBike Smart charger 42V/2-4A | Orbea 2.Generation eBike Smart charger 42V/2-4A | Orbea 2.Generation eBike Smart charger 42V/2-4A |
| Remote | EN600-L | EN600-L | EN600-L | EN600-L |
| Chainring | e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine | e*thirteen Helix Race e*spec Direct Mount 32T 55mm ChainLine | e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine | Sram XX Direct Mount 34t |
| Crank | Shimano Steps EM600 | Shimano Steps EM900 | Shimano Steps EM600 | Shimano Steps EM900 |
| Shifters | Shimano SLX M7100 I-Spec EV | Shimano M8150 | Shimano SLX M7100 I-Spec EV | SRAM AXS Pod Ultimate |
| Cassette | Shimano CS-M7100 10-51t 12-Speed | Shimano XTR M9100 10-51t 12-Speed | Shimano CS-M7100 10-51t 12-Speed | Sram XX-1297 Eagle 10-52t 12-Speed |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus | Shimano XT Di2 M8150 12s SGS Shadow Plus | Shimano XT M8100 SGS Shadow Plus | Sram XX Eagle AXS |
| Chain | Shimano M7100 | Shimano CN-9100 | Shimano M7100 | Sram XX Eagle 12-Speed |
| Chainguide | Orbea Rise chainguide | Orbea Rise chainguide | Orbea Rise chainguide | Orbea Rise chainguide |
| Handlebar | OC Mountain Control MC10 Carbon, Rise 20, Width 800 | OC Mountain Control MC10 Carbon, Rise 20, Width 800 | OC Mountain Control MC21 Alu SL, Rise20, Width 800 | OC Mountain Control MC10 Carbon, Rise 20, Width 800 |
| Stem | OC Mountain Control MC20, 0º | OC Mountain Control MC11 Alu SL, 0º | OC Mountain Control MC20, 0º | OC Mountain Control MC11 Alu SL, 0º |
| Computer Mount | OC Computer Mount CM-05, Garmin/Sigma | OC Computer Mount CM-05, Garmin/Sigma | OC Computer Mount CM-05, Garmin/Sigma | OC Computer Mount CM-05, Garmin/Sigma |
| Brakes | Shimano XT M8120 Hydraulic Disc | Shimano XTR M9120Hydraulic Disc | Shimano XT M8100 Hydraulic Disc | Shimano XTR M9120Hydraulic Disc |
| Rotors | 203mm Front /180mm Rear | 203mm Front /180mm Rear | 180mm Front /180mm Rear | 180mm Front /180mm Rear |
| Wheels | Oquo Mountain Control MC32TEAM | Oquo Mountain Control MC32LTD | Oquo Mountain Control MC32TEAM | Oquo Mountain Control MC32LTD |
| Tires | Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip | Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip | Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown | Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown |
| Seatpost | OC Mountain Control MC21, 31.6mm, Dropper | Fox Transfer Factory Kashima Dropper 31.6 | OC Mountain Control MC21, 31.6mm, Dropper | Fox Transfer SL Factory Kashima Dropper 31.6 |
| Seatpost Lever | Shimano SL-MT500 I-Spec EV | Shimano SL-MT500 I-Spec EV | Shimano SL-MT500 I-Spec EV | Shimano SL-MT500 I-Spec EV |
| Saddle | Fizik Terra Ridon X5 145mm | Fizik Terra Ridon X1 145mm | Fizik Terra Ridon X5 145mm | Fizik Terra Ridon X1 145mm |
| Grips | Ergon GE10 | Ergon GE10 | Ergon GXR | Ergon GXR |
| Tools | OC FLP Multitool MT-20, Hex 2, 3, 4, 5 + OC Rear axle lever (Hex 6 & valve core removal) | OC FLP Multitool MT-20, Hex 2, 3, 4, 5 + OC Rear axle lever (Hex 6 & valve core removal) | OC FLP Multitool MT-20, Hex 2, 3, 4, 5 + OC Rear axle lever (Hex 6 & valve core removal) | OC FLP Multitool MT-20, Hex 2, 3, 4, 5 + OC Rear axle lever (Hex 6 & valve core removal) |
| Price | $8999 | $11999 | $8699 | $12999 |
