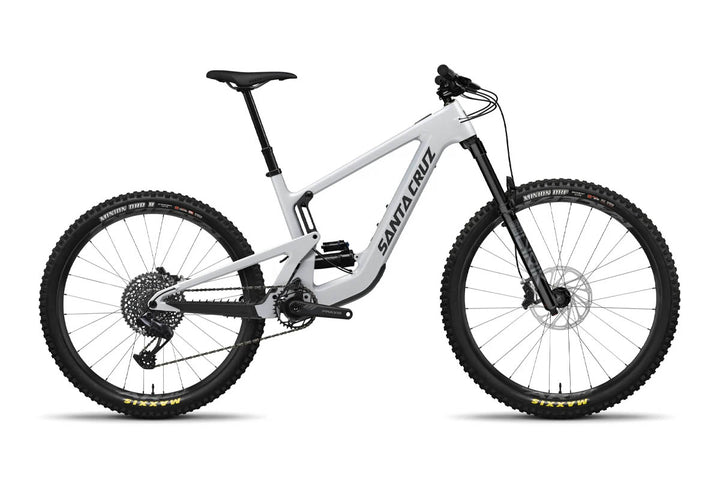

2024 Santa Cruz Heckler SL C S
SRAM GX Eagle
$8,699.00
$8,699.00
$8,699.00
$8,699.00
$8,699.00
$8,699.00
$8,699.00
$8,699.00
$8,699.00
$8,699.00
Free shipping or in-store pickupSpecs
- Wheel Size: MX
- Front Travel: 160mm
- Rear Travel: 150mm
- Frame Material: Carbon
Key Features
About This Bike
The Santa Cruz Heckler SL S-Kit is a manifestation of cutting-edge technology harmoniously married with sophisticated craftsmanship, aiming to elevate the standards of e-mountain biking. Every single feature and component of the bike, carefully chosen, combines to offer a ride that promises thrill, endurance, and an exceptional performance across a myriad of terrains.
Central to the Heckler SL S-Kit's design is its C carbon frame. This is not just any frame but a carefully engineered structure that offers the perfect interplay between weight and strength. While being incredibly lightweight, it doesn't compromise on robustness, ensuring the bike can withstand rugged terrains and intense biking sessions. The frame's flexibility ensures riders maintain control, whether they're navigating sharp turns or tricky trails, giving them the confidence to push boundaries.
Driving the core performance of this e-bike is the Fazua Ride60 Motor. This motor is renowned for its dynamic power delivery, seamlessly propelling riders uphill and giving an extra push when needed on flat terrains. This electric boost is especially transformative for climbers, making uphill rides feel less taxing. Powering this motor is the Fazua 430Wh Integrated Battery. Brilliantly embedded within the bike's frame, it not only preserves the bike's sleek silhouette but ensures long, uninterrupted rides, freeing riders from the constant worry of battery drain.
In the realm of transmission, the Santa Cruz Heckler SL S-Kit boasts the SRAM GX drivetrain. This drivetrain is distinguished by its precise shifting and impeccable reliability. Whether transitioning between gears during rapid descents or slow climbs, the SRAM GX ensures smooth, hassle-free shifts, enhancing overall ride quality. Complementing this is the SRAM Code R brake system. These brakes are all about instant response. Whether there's a sudden obstacle or a sharp bend ahead, riders can trust these brakes to deliver swift, safe stops without a hitch.
Suspension plays a pivotal role in the mountain biking experience, and the Heckler SL S-Kit doesn't disappoint. The RockShox Lyrik Select+ with its 160mm travel is specially designed to absorb shocks, bumps, and the challenges that rugged terrains present. But that's not all; at the rear, the bike is equipped with the RockShox Super Deluxe Select+, a 210x55 shock that ensures the tail end remains stable, balanced, and ready for anything the trail throws its way.
Adding to the bike's overall performance is the VPP (Virtual Pivot Point) Suspension Platform. This technology is all about optimizing the suspension's response to both trail impacts and pedaling dynamics. The result is a ride that feels consistently smooth, offers greater energy efficiency, and reduces rider fatigue over long distances.
A standout design feature, which also speaks volumes about Santa Cruz's attention to aesthetics and functionality, is the internal cable routing. This design choice ensures the bike maintains a clean, streamlined appearance. Beyond the aesthetics, it offers practical benefits by protecting cables from potential external damages and reducing maintenance.
The SRAM UDH, or Universal Derailleur Hanger, is a nod to the bike's adaptability. This feature ensures that wherever riders are, finding a replacement hanger is never a challenge, guaranteeing the adventure doesn't come to an unexpected halt.
For versatility in seat positioning, the Heckler SL S-kit is specced with either the OneUp V2 Dropper Post, 31.6, or the RockShox Reverb, 31.6. Both these options empower riders to adjust their seat height swiftly, allowing for dynamic riding styles, whether it's an aggressive downhill stretch or a steady uphill climb.
Wheelsets are crucial in determining a bike's performance, and the RaceFace AR Offset 30 29"/27.5", paired with DT Swiss 370 hubs, promises just that. These wheels strike an impeccable balance between durability and performance, ensuring the rider's confidence is maintained whether they're carving corners or speeding through straight paths.
Tires are where the bike meets the trail, and the choices here are exceptional. The front wheel boasts the Maxxis Minion DHF 29"x2.5"WT, designed with 3C MaxxGrip and EXO, ensuring unmatched grip and stability. The rear isn't left behind with the Maxxis Minion DHR II 27.5"x2.4", which comes with 3C MaxxTerra and EXO+, guaranteeing traction, durability, and a balanced ride.
Lastly, the Cane Creek 40 IS Integrated Headset solidifies the bike's commitment to delivering a top-notch experience. This headset promises smooth steering responses and longevity, ensuring riders can focus on the trail ahead without distractions.
In essence, the Santa Cruz Heckler SL S-Kit is not just another e-mountain bike. It's a meticulously crafted machine, a testament to engineering brilliance and a promise of adventures that are both exhilarating and unmatched in comfort. Every specification and component underscores Santa Cruz's dedication to offering an e-mountain biking experience that is truly in a league of its own.
Geometry Data By Frame Size
Measurements primarily in millimeters (mm) unless otherwise noted.
Size | S | M | L | XL | XXL |
---|---|---|---|---|---|
Reach | Hi/Lo | 435/432.4 | 460/457.4 | 480/477.5 | 500/497.4 | 525/522.5 |
Stack | 614.9/616.8 | 624/625.8 | 633/634.9 | 651/653 | 664.5/666.5 |
Head Tube Angle | 64.3/64 | 64.3/64 | 64.3/64 | 64.3/64 | 64.3/64 |
Seat Tube Length | 380/380 | 405/405 | 430/430 | 460/460 | 500/500 |
Front Center | 766.1/765.9 | 795.4/795.3 | 819.7/819.6 | 848.4/848.3 | 879.9/879.8 |
BB Height | 344/340.7 | 344/340.7 | 344/340.7 | 344/340.7 | 344/340.7 |
BB Drop (front) | 28.5/31.8 | 28.5/31.8 | 28.5/31.8 | 28.5/31.8 | 28.5/31.8 |
BB Drop (rear) | 9.9/13.3 | 9.9/13.3 | 9.9/13.3 | 9.9/13.3 | 9.9/13.3 |
Wheelbase | 1209.1/1209.7 | 1238.4/1239.1 | 1262.7/1263.4 | 1294.4/1295.1 | 1329.9/1330.5 |
Rear Center | 443/443.8 | 443/443.8 | 443/443.8 | 446/446.8 | 450/450.7 |
Head Tube Length | 100 | 110 | 120 | 140 | 155 |
Top Tube Length | 569.2/579.6 | 602.7/602.9 | 620.6/621.5 | 641.8/642.7 | 669.1/670 |
Seat Tube Angle | 76.8/76.6 | 77.1/76.9 | 77.5/77.2 | 77.7/77.5 | 77.8/77.5 |
Standover Height | 720.1/716.2 | 733/728.8 | 733.4/729.3 | 731.7/731.6 | 741/738.6 |
Detailed Specs By Build Kit
Kit | R | S | GX AXS | X0 AXS RSV | XX AXS RSV |
---|---|---|---|---|---|
Price | $7299 | $8699.00 | $9699 | $11699 | $12999 |
Material | Carbon C | Carbon C | Carbon C | Carbon CC | Carbon CC |
Travel | 150mm | 150mm | 150mm | 150mm | 150mm |
Wheel Size | MX | MX | MX | MX | MX |
Rear Shock | FOX Float Performance, 210x55 or Fox Float DPS Performance, 210x55 | RockShox Super Deluxe Select+, 210x55 | RockShox Super Deluxe Select+, 210x55 | RockShox Super Deluxe Ultimate, 210x55 | RockShox Super Deluxe Ultimate, 210x55 |
Fork | RockShox Lyrik Base, 160mm | RockShox Lyrik Select+, 160mm | |||
,RockShox Lyrik Select+ | 160mm,RockShox Lyrik Ultimate | 160mm,RockShox Lyrik Ultimate | 160mm | ||
Rear Derailleur | SRAM NX Eagle, 12spd | SRAM GX Eagle, 12spd | SRAM GX Eagle AXS T-Type, 12spd | SRAM X0 Eagle AXS T-Type, 12spd | SRAM XX Eagle AXS T-Type, 12spd |
Right Shifter | SRAM NX | SRAM GX Eagle Single Click, 12spd or SRAM X01 Eagle Single Click, 12spd | SRAM AXS Pod Bridge | SRAM AXS Pod Bridge | SRAM AXS Pod Ultimate Bridge |
Cassette | SRAM PG1230, 12spd, 11-50t | SRAM XG1275 Eagle, 12spd, 10-50t or SRAM XG1275 Eagle, 12spd, 10-52 | SRAM GX Eagle T-Type, 10-52t | SRAM X0 Eagle T-Type, 10-52t | SRAM XX Eagle T-Type, 10-52t |
Chain | SRAM NX Eagle, 12spd | SRAM GX Eagle, 12spd or SRAM X01 Eagle, 12spd | SRAM GX Eagle T-Type, 12spd | SRAM X0 Eagle T-Type, Flattop, 12spd | SRAM XX Eagle T-Type, Flattop, 12spd |
Chainguide | OneUp Chainguide | OneUp Chainguide | OneUp Chainguide | OneUp Chainguide | OneUp Chainguide |
Headset | FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated | Cane Creek 40 IS Integrated Headset | Cane Creek 40 IS Integrated Headset | Cane Creek 40 IS Integrated Headset | Chris King DropSet 3 Integrated Headset |
Rear Tire | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+ | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+ | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+ | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+ | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+ |
Front Tire | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO |
Front Hub | SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h | DT Swiss 370, 12x110, Torque Cap, 6-Bolt, 28h | DT Swiss 370, 12x110, Torque Cap, 6-Bolt, 28h | Industry Nine 1/1, 15x110, Torque Cap, 6-Bolt, 28h | Industry Nine Hydra, 15x110, Torque Cap, 6-Bolt, 28h |
Front Rim | WTB ST i30 TCS 2.0 29" | RaceFace AR Offset 30, 29" | Reserve 30|SL AL 6069 29" | Reserve 30|HD 29" | Reserve 30|HD 29" |
Rear Hub | SRAM MTH 746, 12x148, HG, 6-Bolt, 32h | DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h | DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h | Industry Nine 1/1, 12x148, XD, 6-Bolt, 28h | Industry Nine Hydra, 12x148, XD, 6-Bolt, 28h |
Rear Rim | WTB ST i30 TCS 2.0 27.5" | RaceFace AR Offset 30, 27.5" | Reserve 30|SL AL 6069 27.5" | Reserve 30|HD 27.5" | Reserve 30|HD 27.5" |
Front Rotor | Avid Centerline, 200mm | Avid Centerline, 200mm | SRAM HS2 200mm | SRAM HS2 200mm | SRAM HS2 200mm |
Rear Rotor | Avid Centerline, 200mm | Avid Centerline, 200mm | SRAM HS2 200mm | SRAM HS2 200mm | SRAM HS2 200mm |
Brakes | SRAM DB8 | SRAM Code R | SRAM Code Bronze Stealth | SRAM Code Silver Stealth | Code Ultimate Stealth |
Crankset | Praxis eTor AL, 104BCD, 165mm | Praxis eTor AL, 104BCD, 165mm | Praxis eTor AL, 104BCD, 165mm | Praxis eTor AL, 104BCD, 165mm | Praxis eTor AL, 104BCD, 165mm |
Handlebars | e13 TRS Base | Burgtec Alloy Bar | Santa Cruz 35 Carbon Bar, 800mm | Santa Cruz 35 Carbon Bar, 800mm | Santa Cruz e35 Carbon Bar, 800mm |
Stem | e.13 Base | Burgtec Enduro MK3, 42mm | Burgtec Enduro MK3, 42mm | Burgtec Enduro MK3, 42mm | Burgtec Enduro MK3 Machined, 42mm |
Saddle | WTB Silverado Medium, CroMo | WTB Silverado Medium, CroMo | WTB Silverado Medium, CroMo | WTB Silverado Medium, Ti | WTB Silverado Medium, Ti |
Seatpost | SDG Tellis Dropper, 31.6 | OneUp V2 Dropper Post, 31.6 or RockShox Reverb, 31.6 | OneUp V2 Dropper Post, 31.6 | OneUp V2 Dropper Post, 31.6 | RockShox Reverb AXS, 31.6 |
Grips | Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar | Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar | Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar | Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar | Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar |
Battery | FAZUA 430 Wh Integrated Battery | FAZUA 430 Wh Integrated Battery | FAZUA 430 Wh Integrated Battery | FAZUA 430 Wh Integrated Battery | FAZUA 430 Wh Integrated Battery |
Drive Unit | FAZUA RIDE60 | FAZUA RIDE60 | FAZUA RIDE60 | FAZUA RIDE60 | FAZUA RIDE60 |
Battery Charger | FAZUA Charger | FAZUA Charger | FAZUA Charger | FAZUA Charger | FAZUA Charger |
