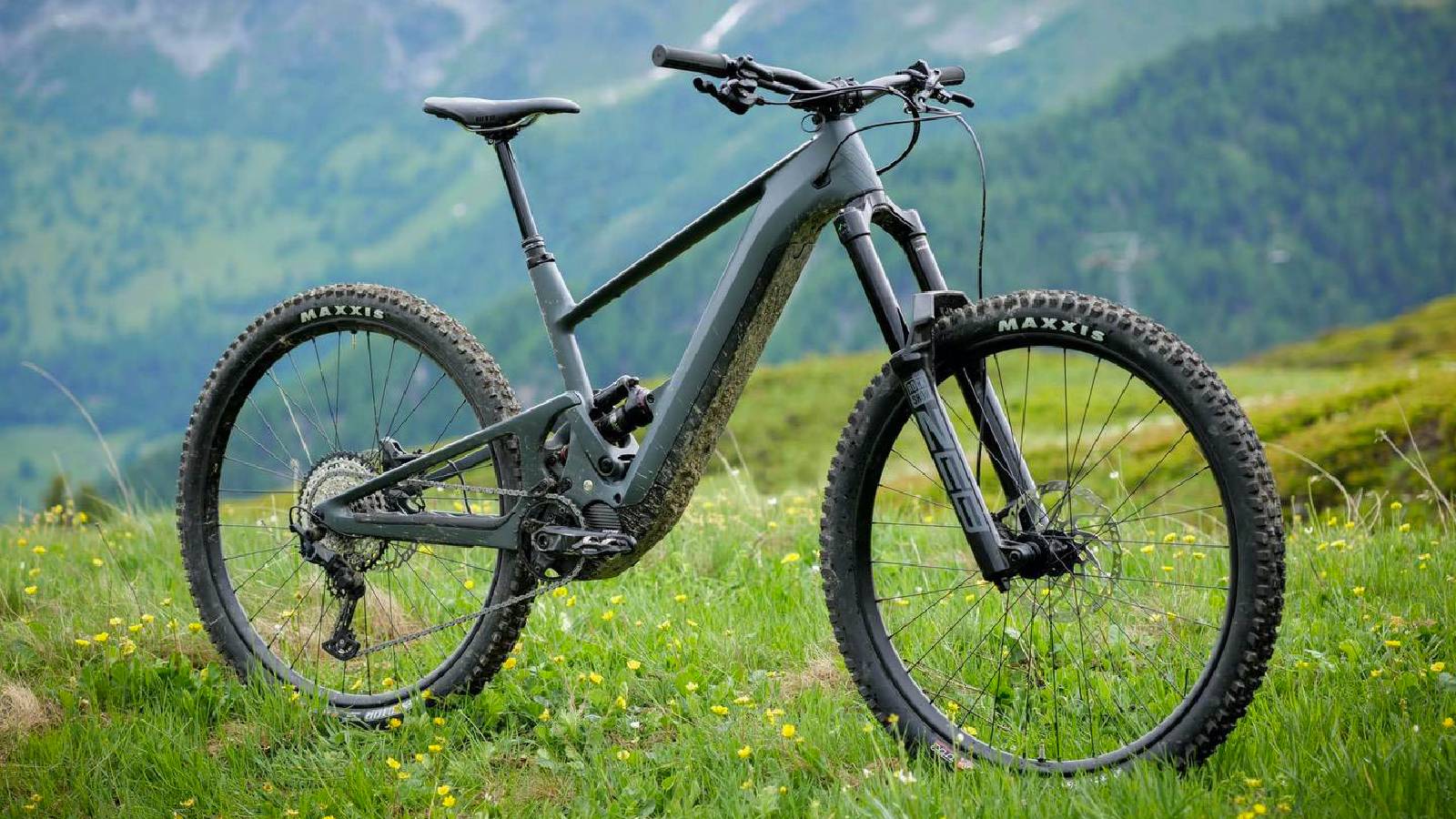

2022 SCOR 4060 Z ST

An e-bike for miles and miles of adventure.

Get ready for the ultimate mountain biking experience on the 2022 SCOR 4060 Z ST. You can hit the longest trails with the small but mighty Shimano EP8 motor, and the long-lasting 720Wh battery.

Check out the full specs in the table below.

Shop Inventory

Ebikes Trail Bikes

Specifications Specifications

Build Kit	SLX	XT
Wheel Size	29"	29"
Front Travel	150mm	150mm
Rear Travel	140mm	140mm

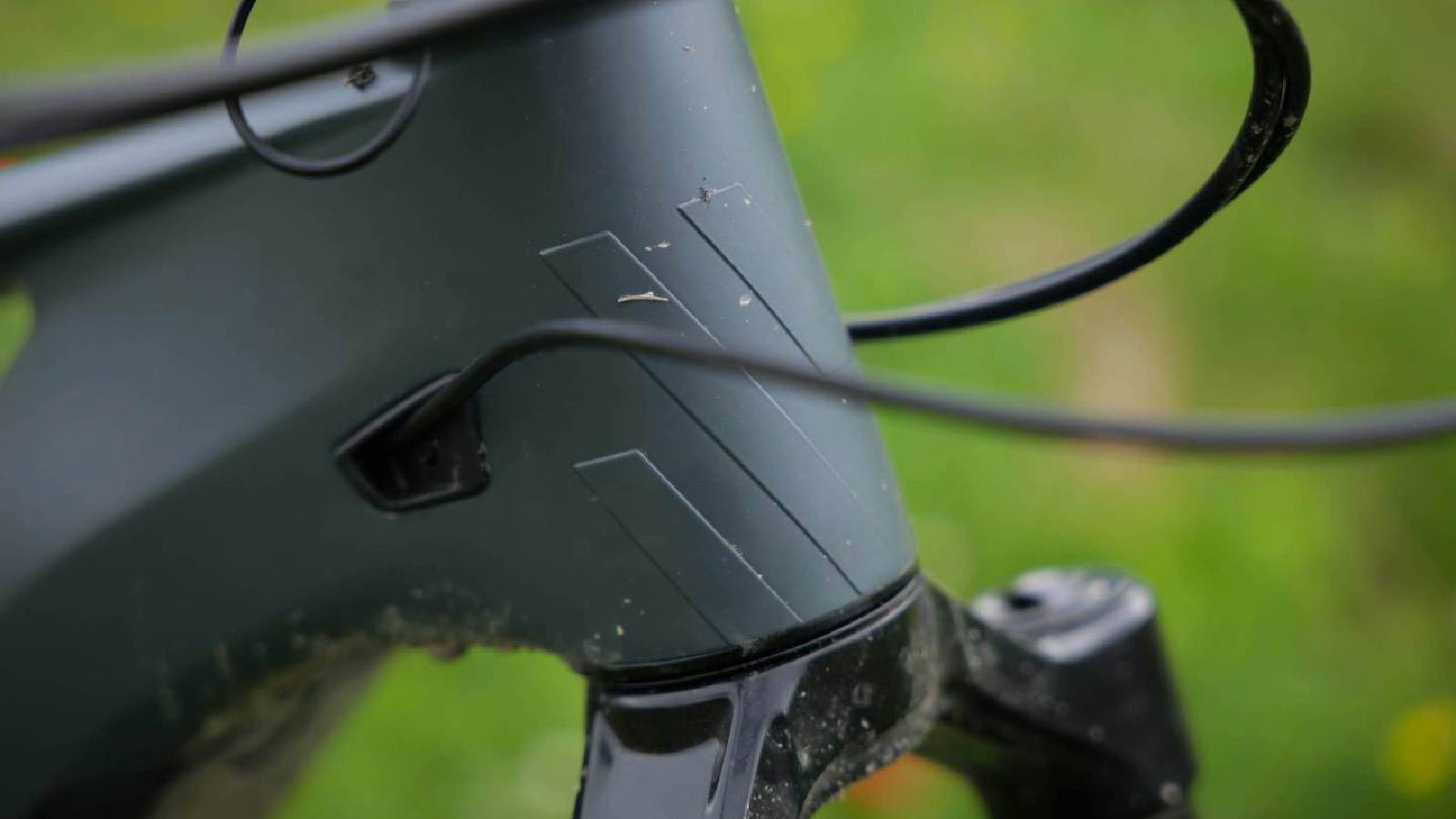

Frame	SCOR 4060 Z Full Carbon Frame, Lower-Link Driven Instant Center Linkage, 140mm Rear Wheel Travel, Fully Guided Internal Cable Routing, Boost 148, SRAM Universal Derailleur Hanger, Lower ISCG 05 Mount/Chainguide	SCOR 4060 Z Full Carbon Frame, Lower-Link Driven Instant Center Linkage, 140mm Rear Wheel Travel, Fully Guided Internal Cable Routing, Boost 148, SRAM Universal Derailleur Hanger, Lower ISCG 05 Mount/Chainguide
Drive Unit	Shimano Steps EP8 (DU-EP800)	Shimano Steps EP8 (DU-EP800)
Drive Unit Control	Shimano Steps EP8 Left Switch Unit (SW-EM800-L)	Shimano Steps EP8 Left Switch Unit (SW-EM800-L)
Display	Shimano Steps EP8 Wireless Cycle Computer (SC-EM800)	Shimano Steps EP8 Wireless Cycle Computer (SC-EM800)
Battery Pack	Darfon 36V 720Wh, Shimano Steps Service Included	Darfon 36V 720Wh, Shimano Steps Service Included
Charger	Darfon Smart Plus 100-240V 4A EU	Darfon Smart Plus 100-240V 4A EU
Fork	RockShox ZEB, 150mm Travel, Charger R Damper, DebonAir Air Spring, Rebound Adjust, 44mm Rake, E-MTB Rated	Fox Float 38 Factory Series E-Bike, 150mm Travel, Grip2 Damper, Low & High Speed Compression & Rebound Adjust, 44mm Rake, E-MTB Rated
Rear Shock	RockShox Super Deluxe Select, Rebound Adjust	Fox Float X Factory Series, Compression & Rebound Adjust, 2 Position Adjust
Gears	1x12	1x12
Chainwheel	Shimano FC-EM600, 165mm Length, 34T Chainring (SM-CRE80-12-B)	Shimano Deore XT (FC-M8150), 165mm Length, 34T Chainring (SM-CRE80-12-B)
Cassette	Shimano Deore (CS-M6100-12), 10-51T, 12 Speed HYPERGLIDE+	Shimano Deore XT (CS-M8100-12), 10-51T
Chain	Shimano Deore (CN-M6100)	Shimano Deore XT (CN-M8100)
Rear Derailleur	Shimano Deore SLX (RD-M7100), 12 Speed	Shimano Deore XT (RD-M8100), 12 Speed
Shifters	Shimano Deore SLX (SL-M7100-R)	Shimano Deore XT (SL-M8100-R)
Brakes	Shimano BR-M6120, BL-M6100 Levers, SM-RT66 Rotors; 203mm	Shimano Deore XT (BR-M8120), BL-M8100 Levers, SM-RT86 Rotors; 203mm
Handlebar	SCOR Alloy Bar, 31.8mm Clamp, 800mm Wide, 20mm Rise, 5° Up Sweep - 9° Back Sweep	SCOR Carbon Bar, 31.8mm Clamp, 800mm Wide, 20mm Rise, 5° Up Sweep - 9° Back Sweep
Stem	SCOR Alloy Stem, 3D Forged, 31.6mm Bar Bore, 35mm Length, 0° Angle	Burgtec Enduro MK3, 3D Forged and Fully CNC Machined, 31.6mm Bar Bore, 35mm Length, 0° Angle
Seatpost	X-Fusion Manic, S 125mm, M 150mm, L/XL 170mm Travel	Bikeyoke Divine, S 125mm, M/L 160mm, XL 185mm Travel, Triggy Alpha Lever
Saddle	Fizik Terra Alpaca X5	Fizik Terra Alpaca
Wheelset	XDH-130, 32 Spokes, Sealed Cartridge Bearings Hubs, 6061-T6 Alloy Rim; Welded Joint, 30mm Internal Width, Tubeless Ready	DT Swiss H 1900 Spline, 30mm Internal Width, Tubeless Ready
Hubs	XDH-130, 32 Spokes, Sealed Cartridge Bearings Hubs	DT Swiss 370, Ratchet LN Freehub, Straightpull Spoke Interface, Boost Spacing
Tires	Maxxis Assegai 29 x 2.5" (F)/Maxxis Dissector 29 x 2.4" (R), Compound: 3C Maxx Grip (F)/3C Maxx Terra (R), Casing: EXO+ (F)/Double Down (R), Tubeless Ready	Maxxis Assegai 29 x 2.5" (F)/Maxxis Dissector 29 x 2.4" (R), Compound: 3C Maxx Grip (F)/3C Maxx Terra (R), Casing: EXO+ (F)/Double Down (R), Tubeless Ready
Tire Clearance	Width: 64mm, Diameter: 750mm	Width: 64mm, Diameter: 750mm
Extras	SCOR 4060 Z X Slicy MySublimistick Frame Protector	SCOR 4060 Z X Slicy MySublimistick Frame Protector
ASTM Classification	Level 4	Level 4

Highlighted Features of the 2022 SCOR 4060 Z ST

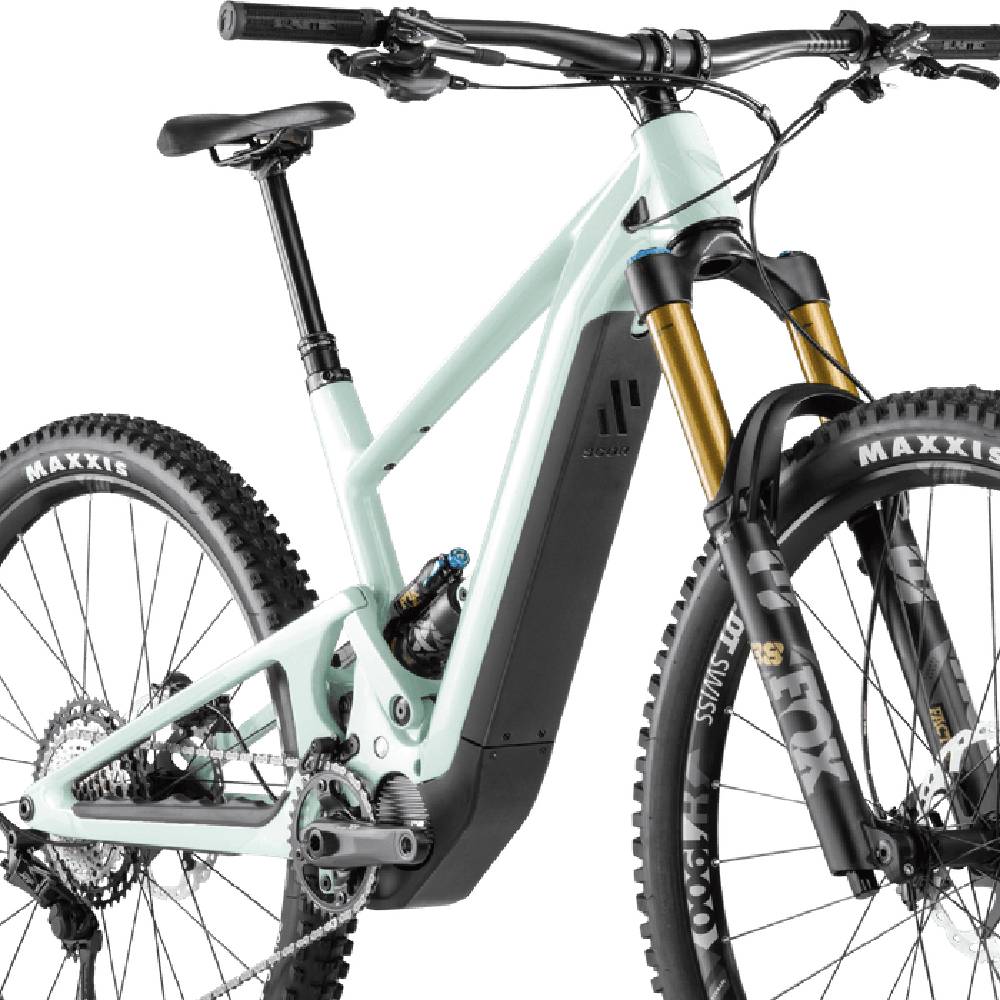

Carbon Frame

It has expertly-laid high-quality composites. Making it light, stiff, and strong enough for anything on the trails.

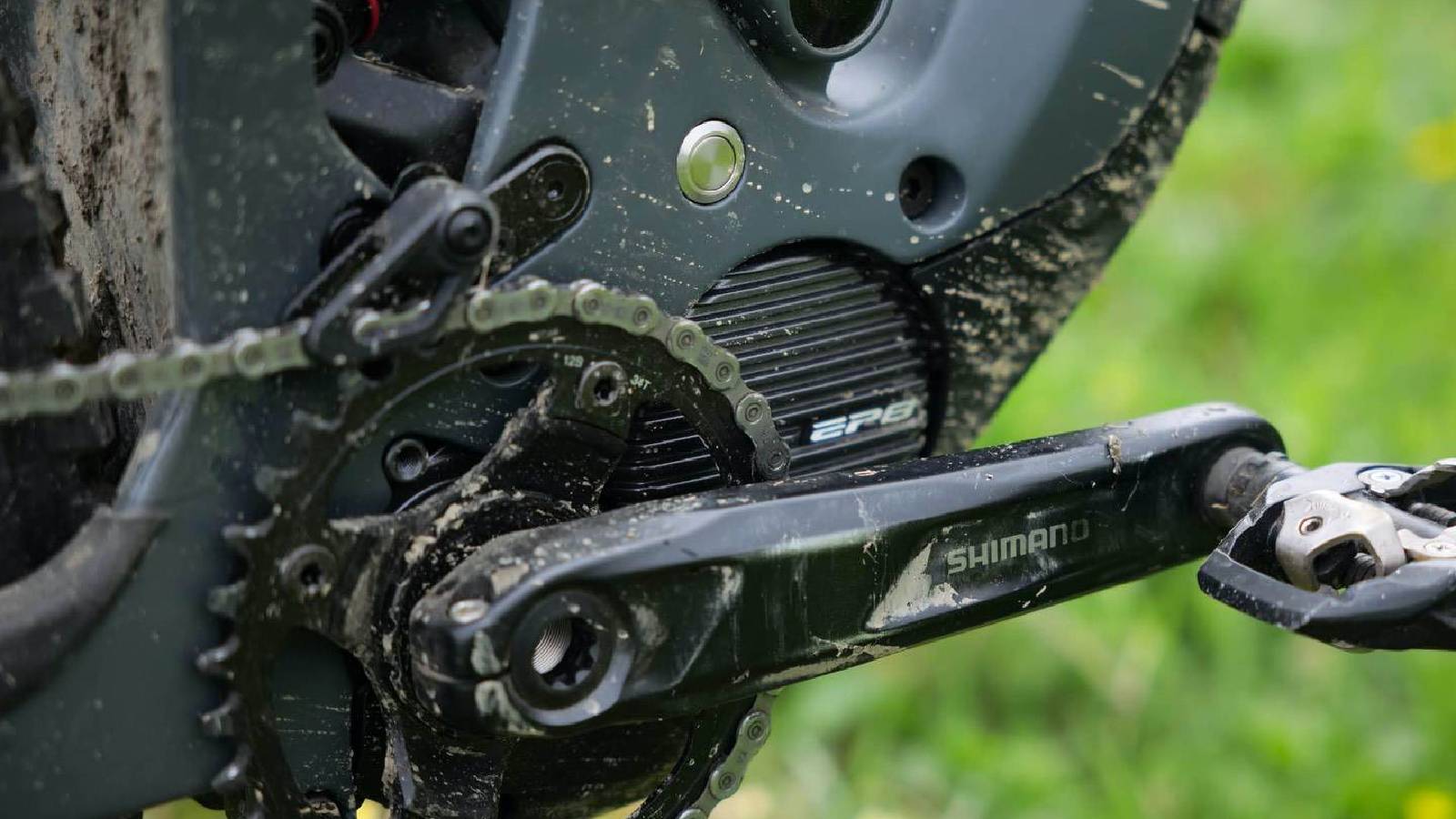

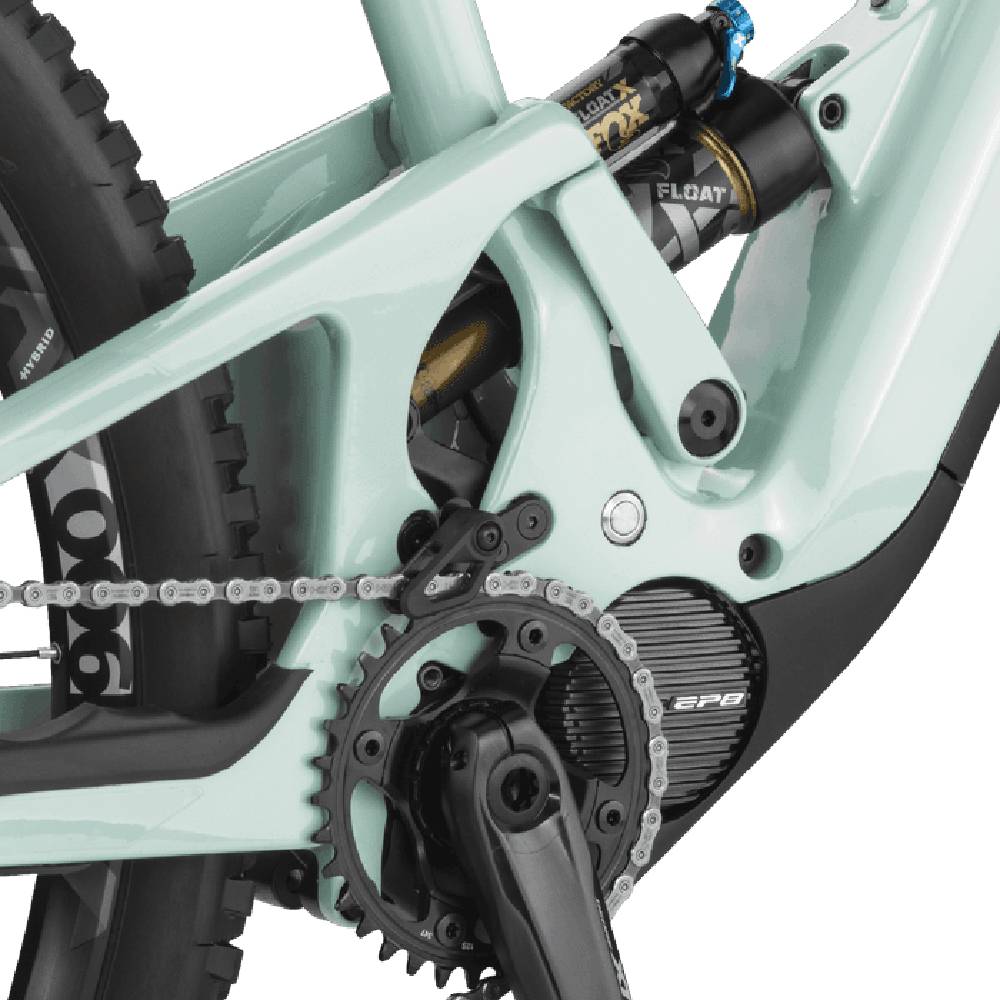

Top-Notch Power

This bike runs on the latest Shimano EP8 motor. A 2.6kg package that delivers an unmatched 85Nm of torque. It's also compact for a low center of gravity.

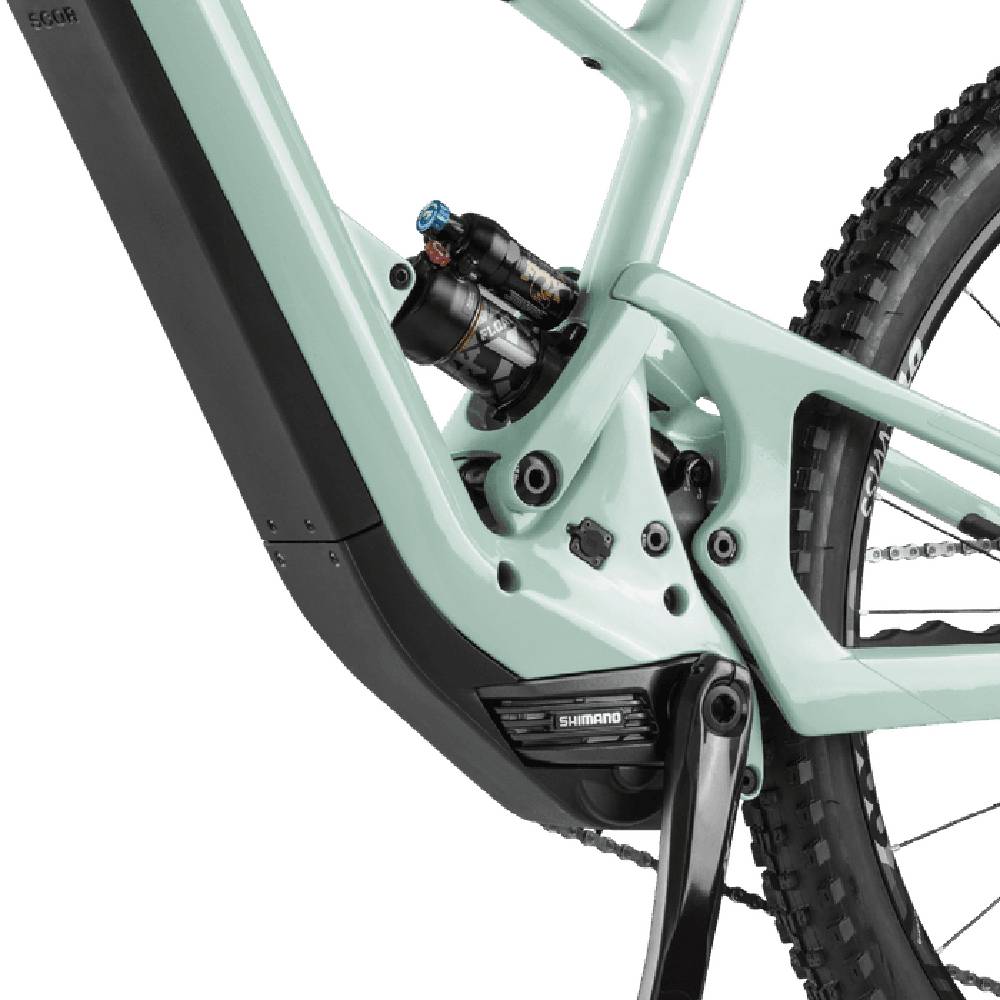

Long Battery Life

A slimline Daron battery with a 720Wh range. Hours of riding and playing as hard as you want. Best of all, it's approved and serviced by Shimano.

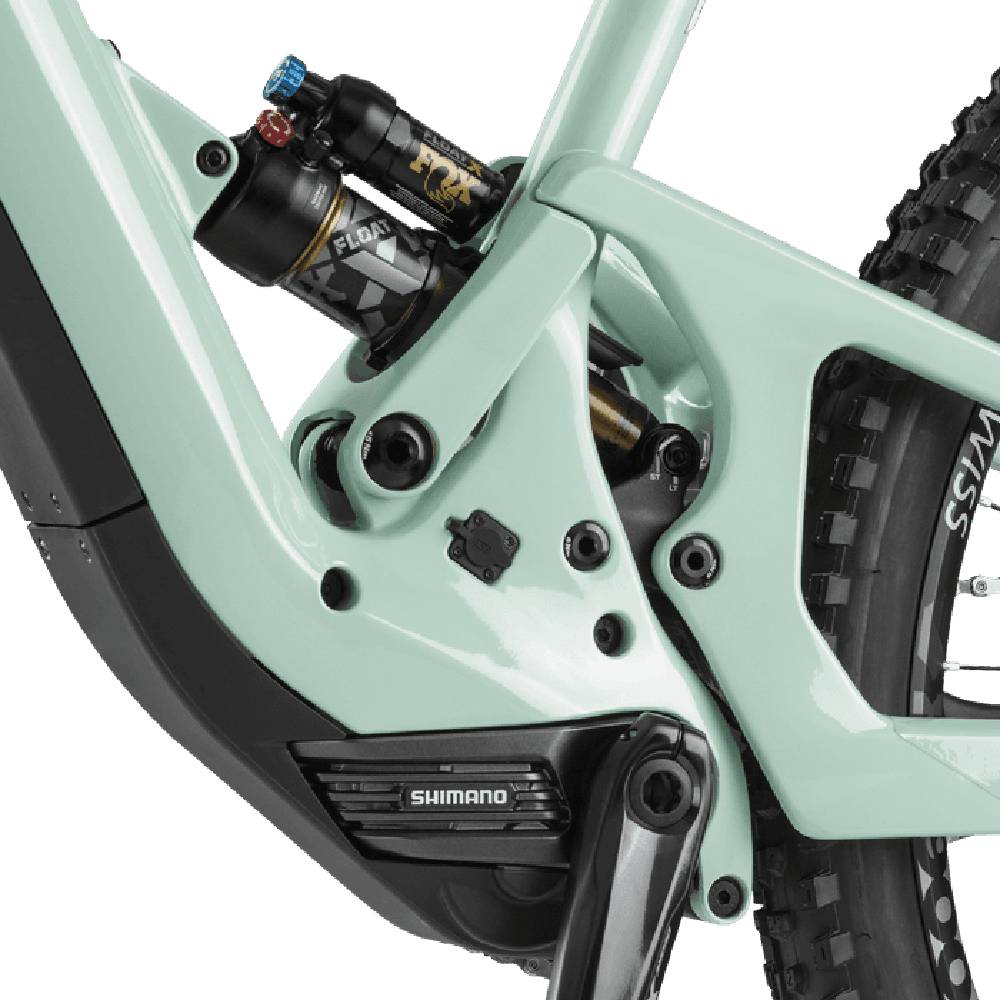

Unmatched Suspension

A lower-link activated virtual pivot suspension with Enduro Max bearings. Supple off the top for amazing grip and progressive support for riding too deep.

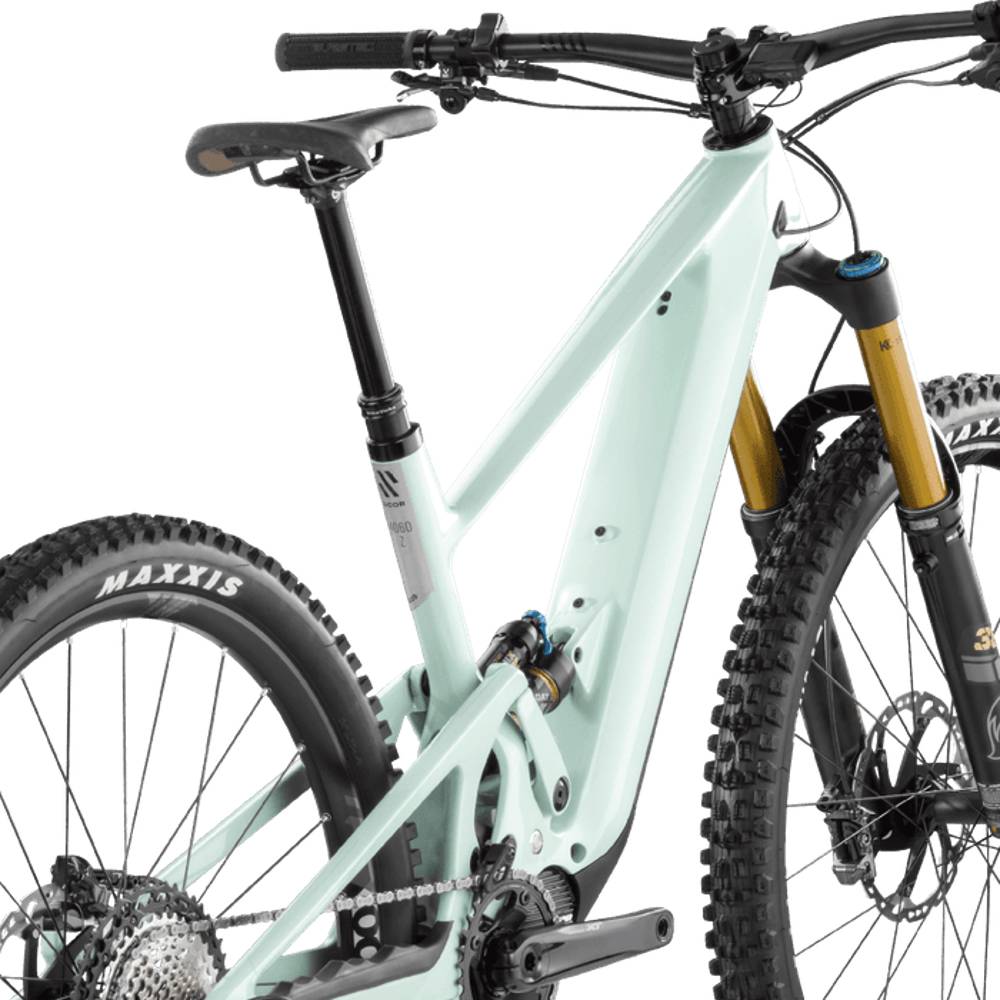

Enhanced Geometry

The motor and battery amplify the ride experience. It's the same geometry, dynamic ability, and playful feel as SCOR's unassisted bikes with an electric boost.

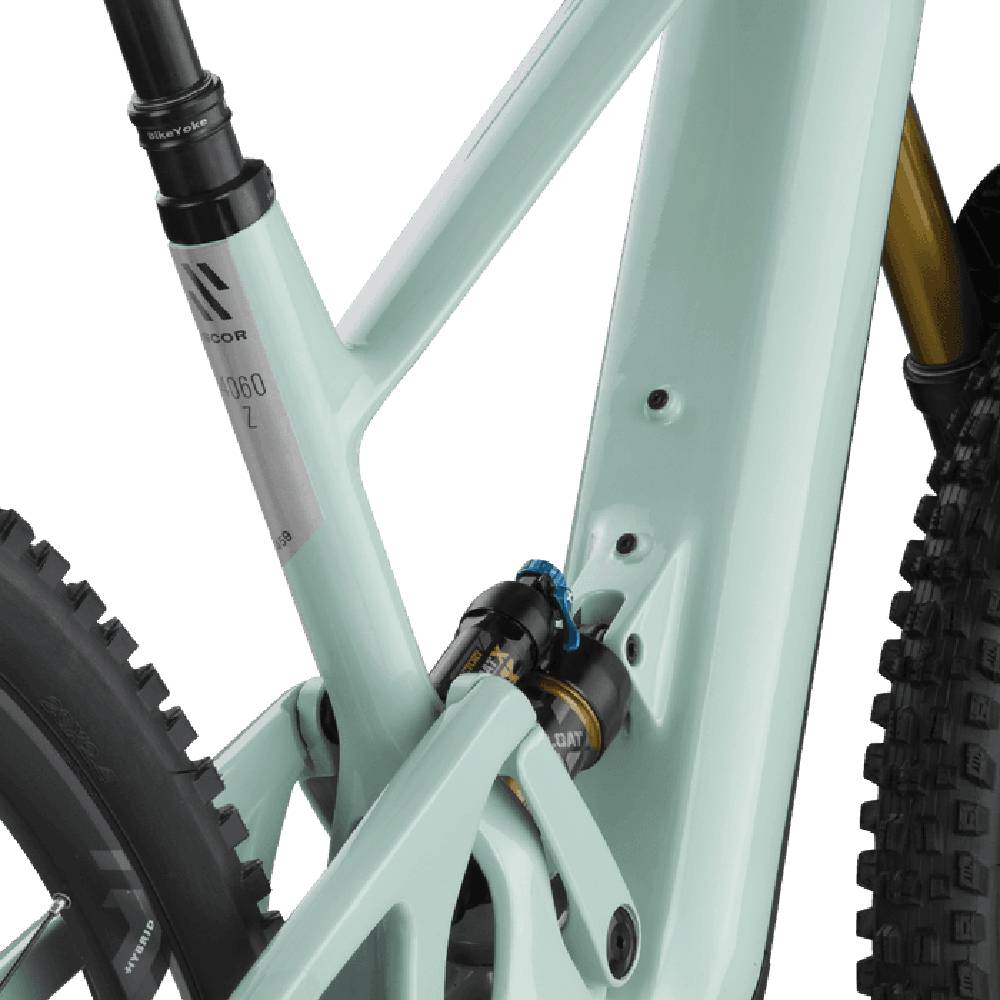

Mounting Points

Mountains for bolt-on storage to travel with all of your gear. And room for almost any size water bottle in the front triangle.

Geometry Details by Size Geometry Details by Size

Size	S	M	L	XL
Stack MM	599	611	625	636
Reach MM (reach)	436	461	485	516
Seat Tube MM (st)	400	425	440	470
Top Tube MM (tt)	561	590	621	655
Head Tube MM (ht)	87	99	115	127
Head Angle (ha)	65.5	65.5	65.5	65.5
Chainstay MM	436	436	436	436
Front Center MM (fc)	752	777	802	832
Wheelbase MM (wb)	1185	1210	1235	1265
BB Drop MM (drop)	27	27	27	27
Fork Length MM (fl)	560	560	560	560
Fork Rake MM (fr)	44	44	44	44
Standover Height mm	714	723	731	741
BB Height MM	342	342	342	342
Seat Tube Angle (Effective)	78	78	78	78
Seat Tube Angle @750mm	76.5	76.5	76.5	76.5
