2022 SCOR 4060 ST
Long live play time.
Check out the full technical specs for the 2022 Scor 4060 ST below.
Shop Inventory
Available Colors

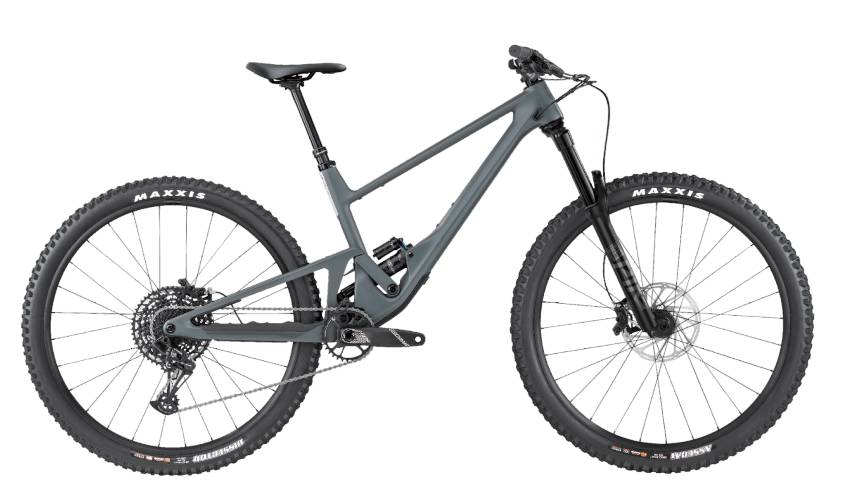

2022 Scor 4060 ST NX in Slate

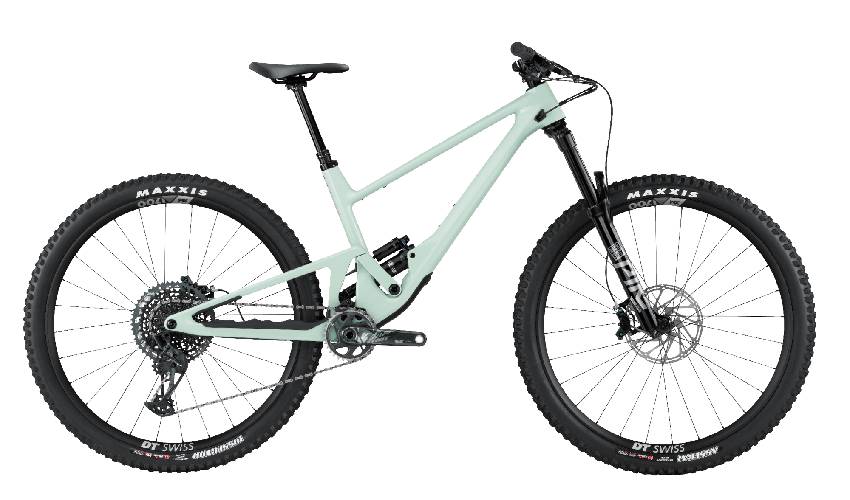

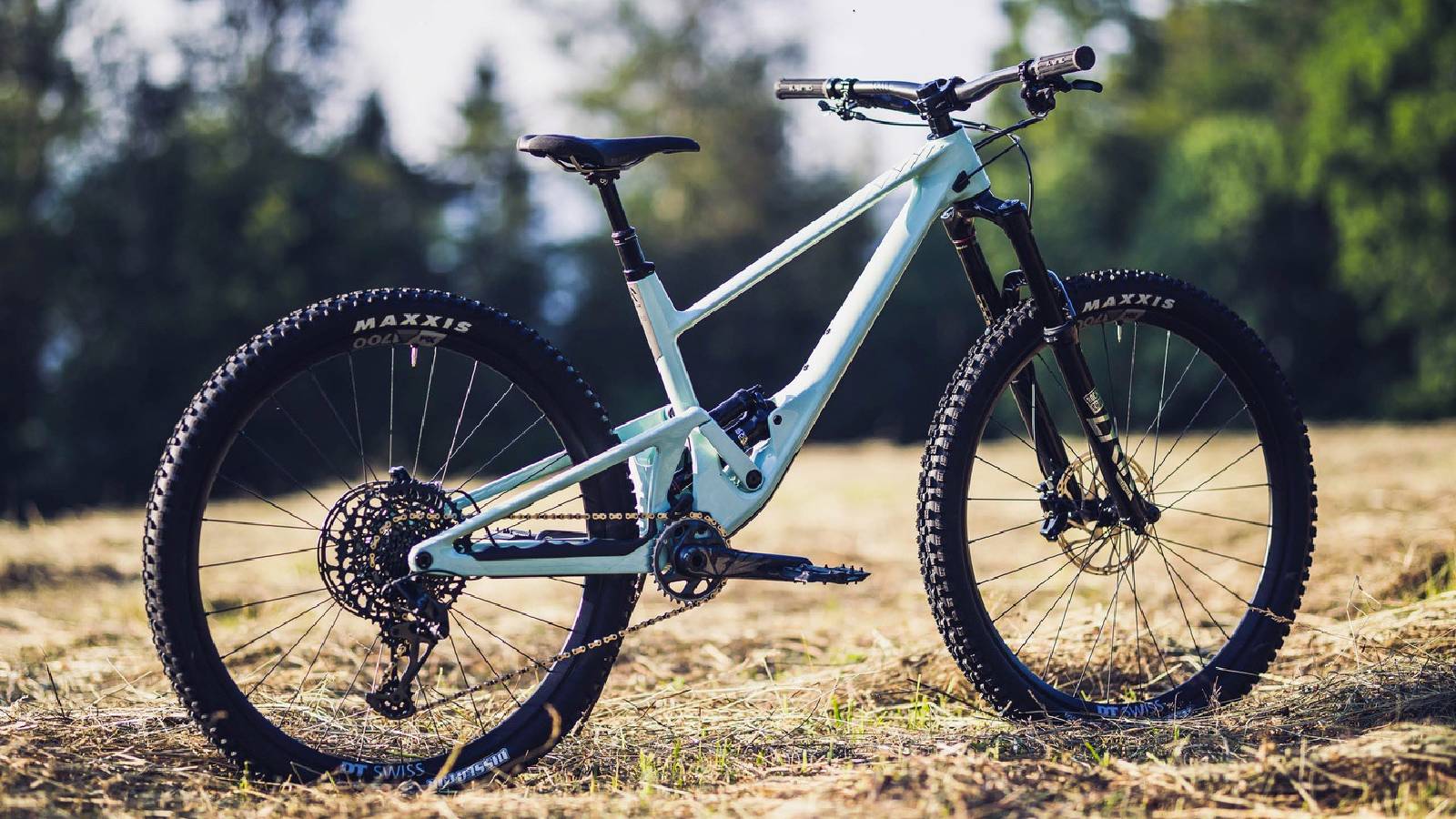

2022 Scor 4060 ST GX in Mint
| Build Kit | NX | GX | Frameset |
|---|---|---|---|
| Wheel Size | 29" | 29" | 29" / Mullet |
| Front Travel | 150mm | 150mm | 150mm |
| Rear Travel | 140mm | 140mm | 140mm |

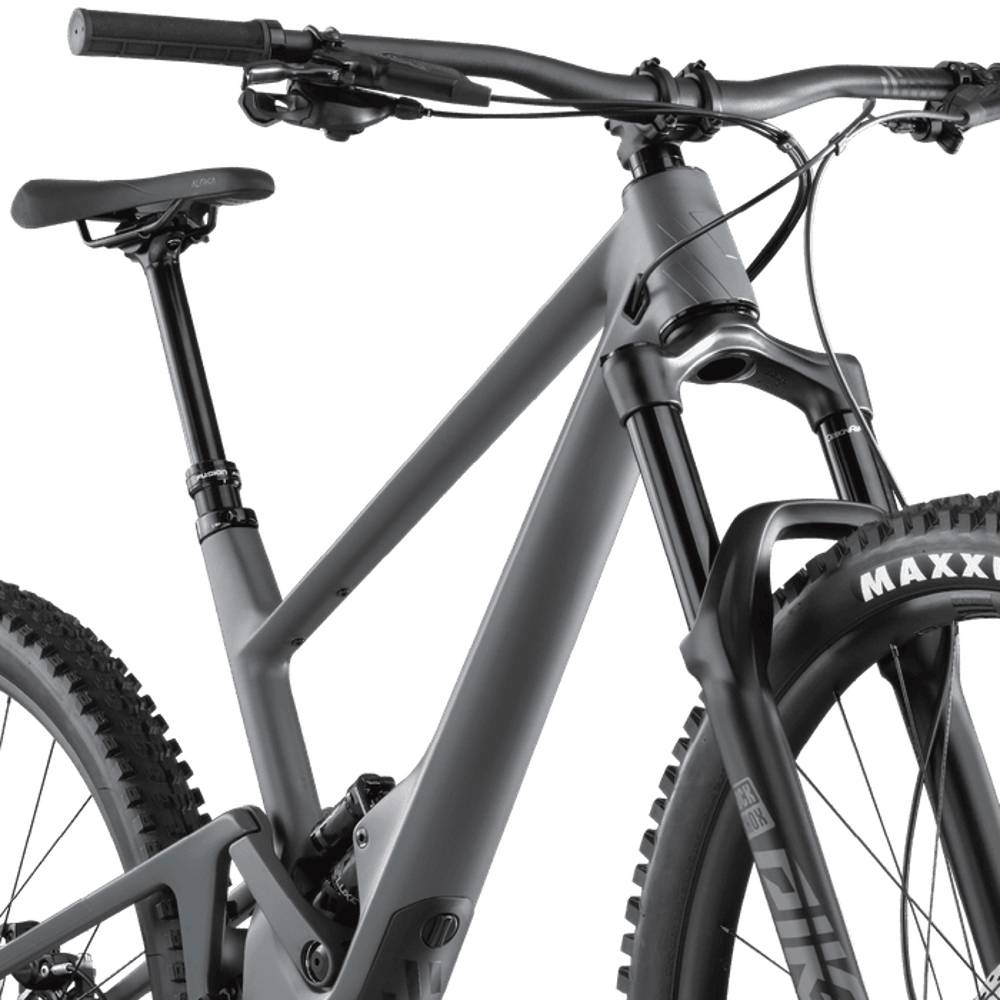

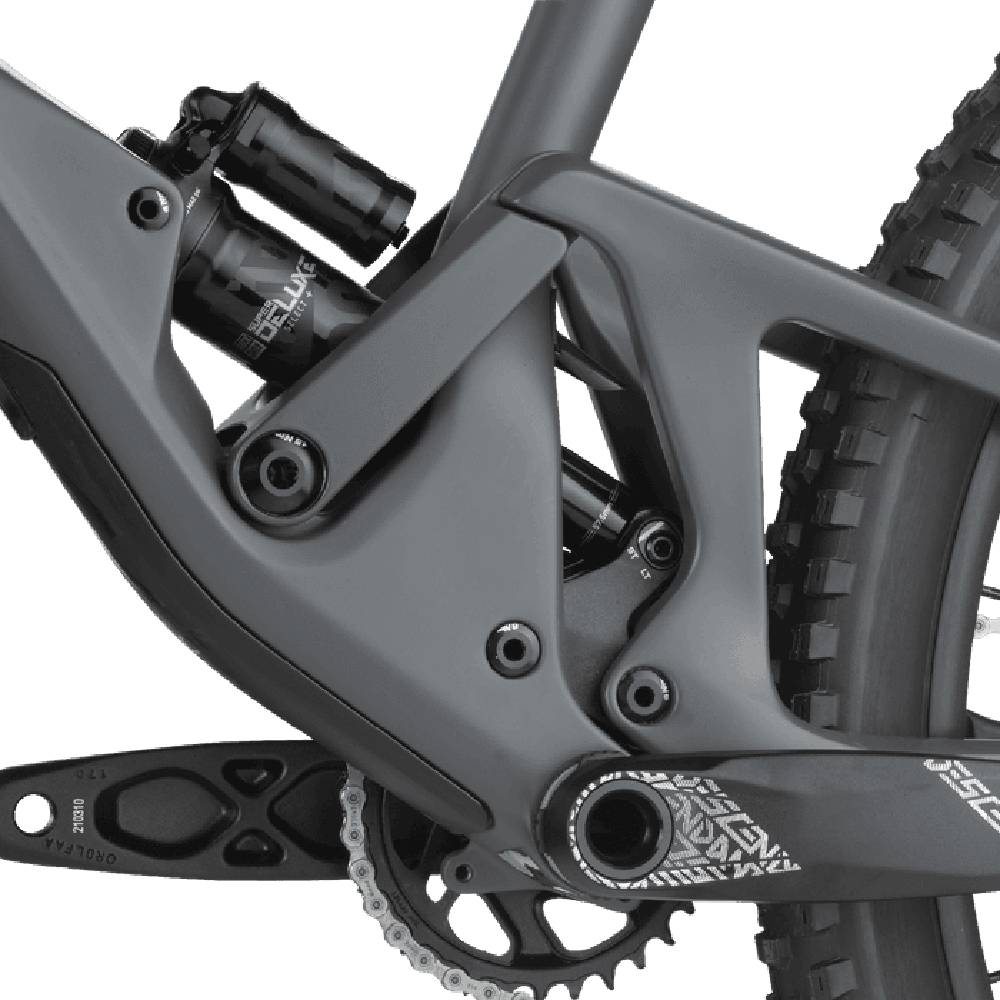

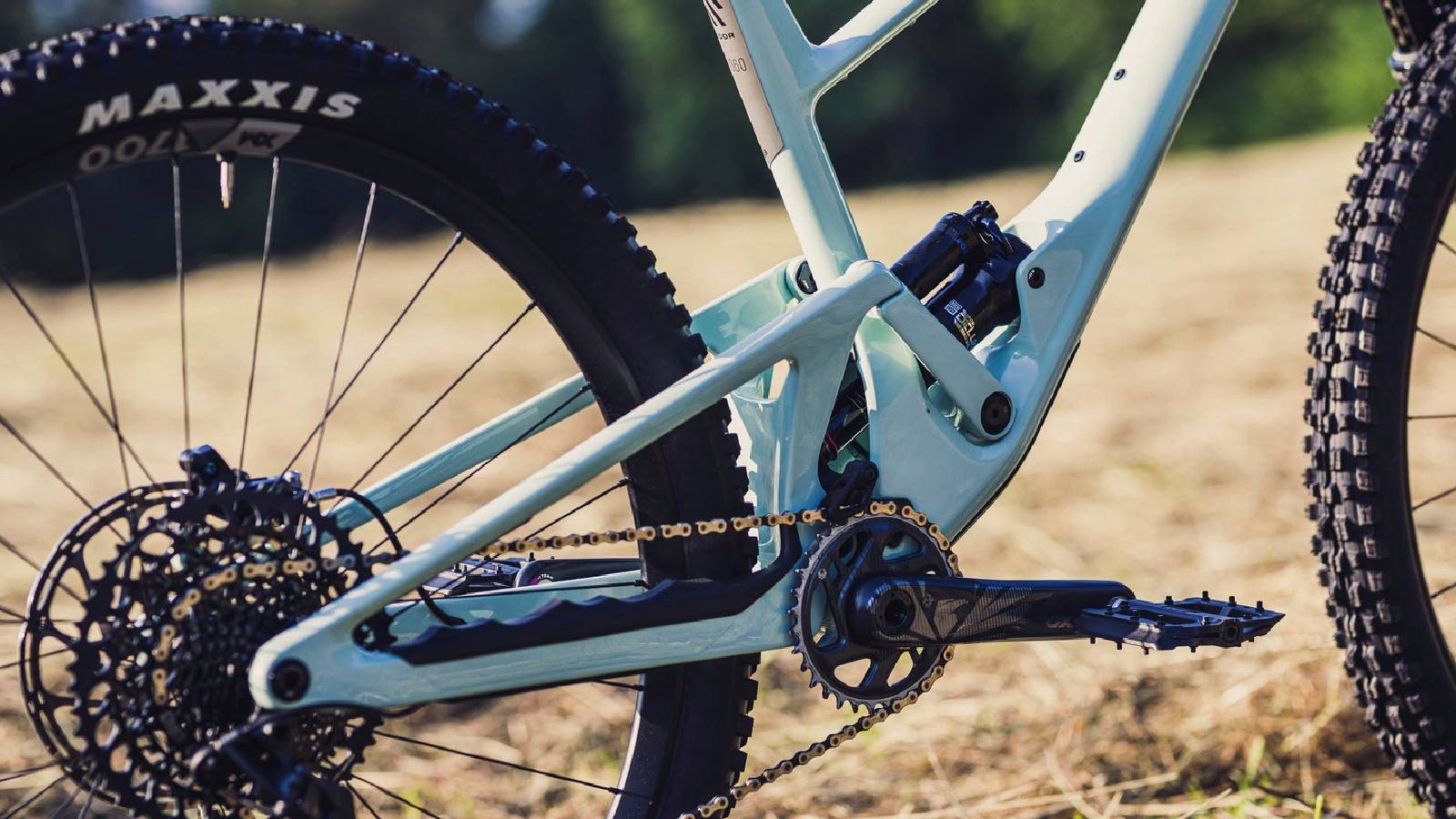

| Frame | SCOR 4060 Full Carbon Frame, Lower-Link Driven Instant Center Linkage, 140mm Rear Wheel Travel, Fully Guided Internal Cable Routing, Stash Box, Boost 148, SRAM Universal Derailleur Hanger, Lower ISCG 05 Mount/Chainguide | SCOR 4060 Full Carbon Frame, Lower-Link Driven Instant Center Linkage, 140mm Rear Wheel Travel, Fully Guided Internal Cable Routing, Stash Box, Boost 148, SRAM Universal Derailleur Hanger, Lower ISCG 05 Mount/Chainguide | SCOR 4060 Full Carbon Frame, Lower-Link Driven Instant Center Linkage, 140mm/160mm Rear Wheel Travel, Fully Guided Internal Cable Routing, Stash Box, Boost 148, SRAM Universal Derailleur Hanger, Lower ISCG 05 Mount/Chainguide |
| Fork | RockShox ZEB Select, 150mm Travel, Charger RC Damper, DebonAir Air Spring, Compression & Rebound Adjust, 44mm Rake | RockShox Pike Ultimate RC2, 150mm Travel, Charger RC2 Damper, DebonAir Air Spring, Low/High Speed Compression & Rebound Adjust, 44mm Rake | - |

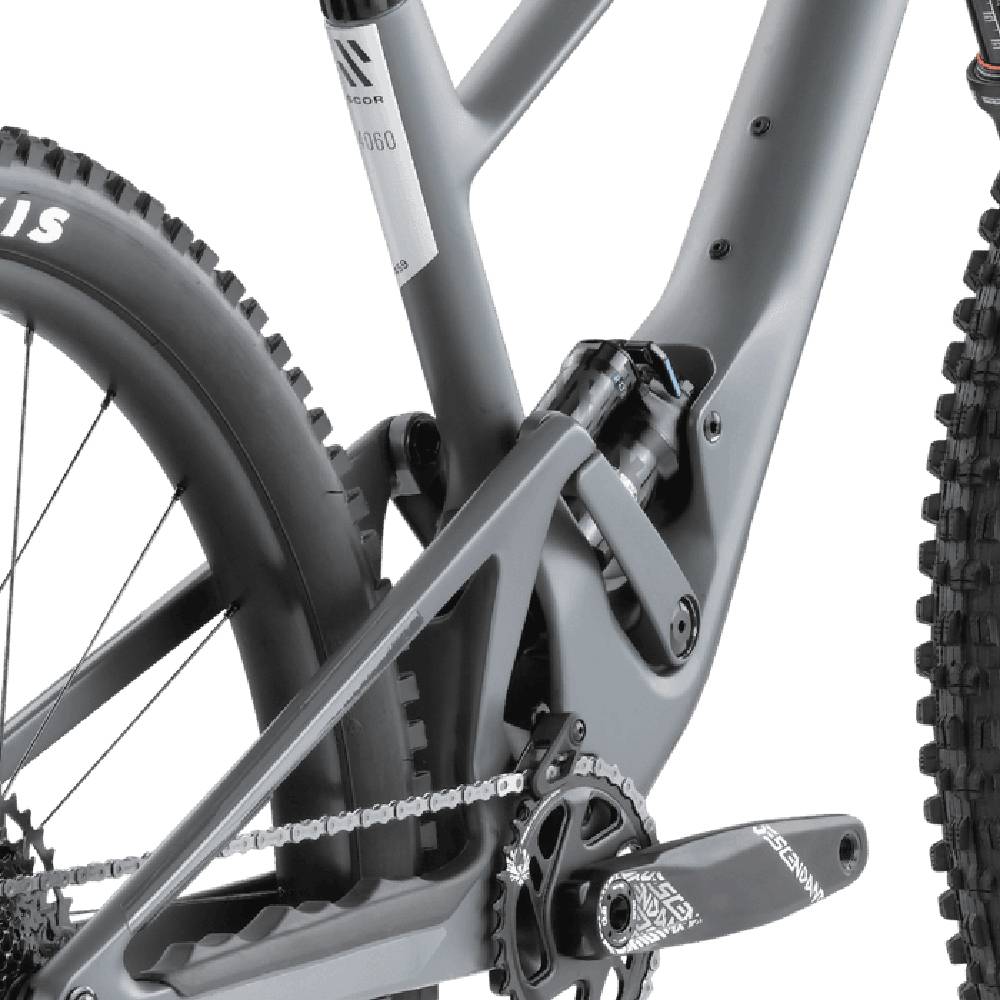

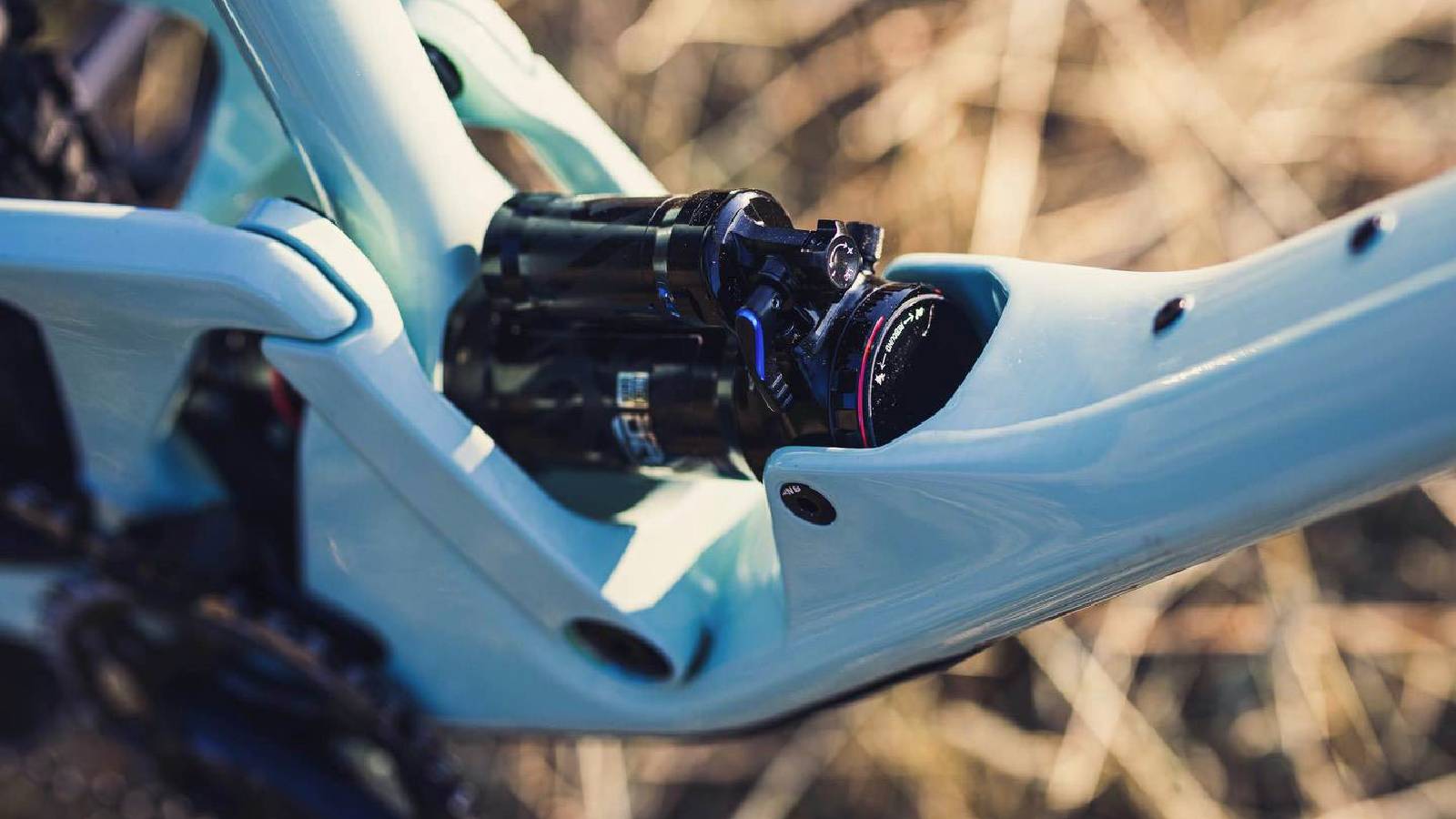

| Rear Shock | RockShox Super Deluxe Select+, RT Damper, Rebound Adjust, Open/Threshold Mode, Trunnion Mount | RockShox Super Deluxe Ultimate, RCT Damper, Compression Adjust (Open Mode), Rebound Adjust, Open/Pedal/Lock Lever, Trunnion Mount | RockShox Super Deluxe Ultimate, RCT Damper, Compression Adjust (Open Mode), Rebound Adjust, Open/Threshold/Lock Lever |
| Gears | 1x12 | 1x12 | - |
| Chainwheel | SRAM Descendant 6K Eagle, 170mm Length, 32T Chainring, DUB Interface | SRAM GX Eagle Carbon Lunar, 170mm Length, 32T Chainring, DUB Interface | - |

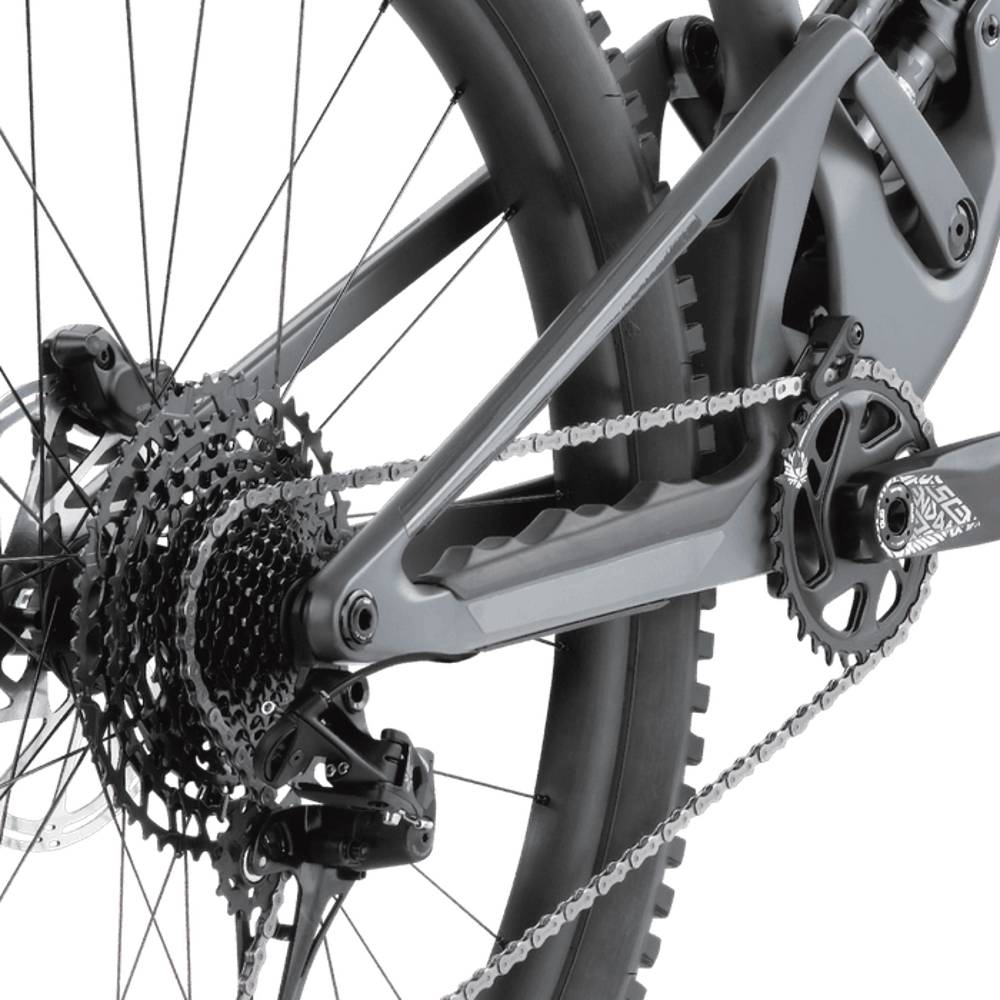

| Cassette | SRAM NX Eagle (PG-1230), 11-50T | SRAM GX Eagle (XG-1275), 10-52T | - |
| Chain | SRAM NX Eagle | SRAM GX Eagle | - |
| Rear Derailleur | SRAM NX Eagle | SRAM GX Eagle Lunar | - |
| Shifters | SRAM NX Eagle Trigger | SRAM GX Eagle Trigger | - |
| Brakes | SRAM Code R, Centerline Rotors; 200mm | SRAM Code R, Centerline Rotors; 200mm | - |
| Handlebar | SCOR Alloy Bar, 31.8mm Clamp, 800mm Wide, 20mm Rise, 5° Up Sweep - 9° Back Sweep | SCOR Carbon Bar, 31.8mm Clamp, 800mm Wide, 20mm Rise, 5° Up Sweep - 7.5° Back Sweep | - |
| Stem | SCOR Alloy Stem, 3D Forged, 31.6mm Bar Bore, 35mm Length, 0° Angle | Burgtec Enduro MK3, 3D Forged and Fully CNC Machined, 31.6mm Bar Bore, 35mm Length, 0° Angle | - |
| Seatpost | X-Fusion Manic, S 125mm, M 150mm, L/XL 170mm Travel | Bikeyoke Divine, S 125mm, M/L 160mm, XL 185mm Travel, Triggy Alpha Lever | - |
| Saddle | Fizik Terra Alpaca X5 | Fizik Terra Alpaca | - |
| Wheelset | XDX-530, 28 Spokes, Sealed Cartridge Bearings Hubs, 6061-T6 Alloy Rim; Welded Joint, 30mm Internal Width, Tubeless Ready | DT Swiss XM 1700 Spline, 30mm Internal Width, Tubeless Ready | - |
| Hubs | XDX-530, 28 Spokes, Sealed Cartridge Bearings Hubs | DT Swiss 350, Rachet SL Freehub, Straightpull Spoke Interface, Boost Spacing | - |
| Tires | Maxxis Assegai 29 x 2.5" (F)/Maxxis Dissector 29 x 2.4" (R), Compound: 3C Maxx Terra (F)/3C Maxx Terra (R), Casing: EXO (F)/EXO+ (R), Tubeless Ready | Maxxis Assegai 29 x 2.5" (F)/Maxxis Dissector 29 x 2.4" (R), Compound: 3C Maxx Terra (F)/3C Maxx Terra (R), Casing: EXO (F)/EXO+ (R), Tubeless Ready | - |
| Tire Clearance | Width: 64mm, Diameter: 750mm | Width: 64mm, Diameter: 750mm | Width: 64mm, Diameter: 750mm |

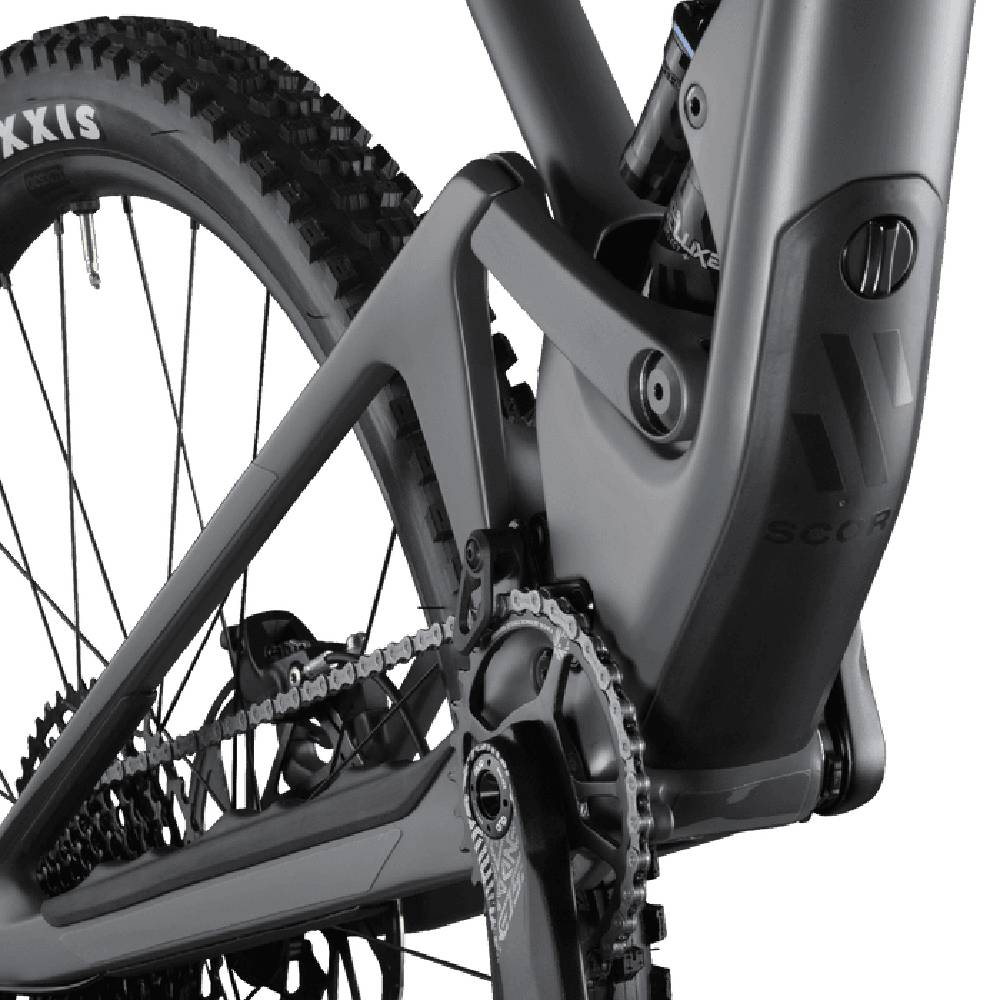

| Extras | Stash Box, SCOR 4060 X Slicy MySublimistick Frame Protector | Stash Box, SCOR 4060 X Slicy MySublimistick Frame Protector | Chainguide, Angle-Adjust Headset, Stash Box, SCOR 4060 X Slicy MySublimistick Frame Protector |
| Weight | 14.90kg/32.85lb | 14.00kg/30.86lb | 2.90kg/6.39lb |
| ASTM Classification | Level 4 | Level 4 | Level 4 |
Highlighted Features of the 2022 SCOR 4060 ST
29" / Mullet
| Size | S | M | L | XL |
|---|---|---|---|---|
| Stack MM | 601 / 599 | 612 / 611 | 626 / 625 | 637 / 636 |
| Reach MM (reach) | 435 / 436 | 459 / 461 | 485 / 485 | 515 / 516 |
| Seat Tube MM (st) | 400 | 425 | 440 | 470 |
| Top Tube MM (tt) | 562 / 561 | 590 / 590 | 621 / 621 | 655 / 655 |
| Head Tube MM (ht) | 87 | 99 | 115 | 127 |
| Head Angle (ha) | 63.8 / 65.5 | 63.8 / 65.5 | 63.8 / 65.5 | 63.8 / 65.5 |
| Chainstay MM | 434 | 434 | 434 | 434 |
| Front Center MM (fc) | 773 / 752 | 798 / 777 | 823 / 802 | 853 / 832 |
| Wheelbase MM (wb) | 1206 / 1185 | 1230 / 1210 | 1255 / 1235 | 1285 / 1265 |
| BB Drop MM (drop) | 21 / 29 | 21 / 29 | 21 / 29 | 21 / 29 |
| Fork Length MM (fl) | 560 | 560 | 560 | 560 |
| Fork Rake MM (fr) | 44 | 44 | 44 | 44 |
| Standover Height mm | 722 / 714 | 731 / 723 | 739 / 731 | 749 / 741 |
| BB Height MM | 338 / 340 | 338 / 340 | 338 / 340 | 338 / 340 |
| Seat Tube Angle (Effective) | 77.9 / 78 | 77.9 / 78 | 77.9 / 78 | 77.9 / 78 |
| Seat Tube Angle @750mm | 76.5 | 76.5 | 76.5 | 76.5 |
Frequently Asked Questions
2022 SCOR 4060 ST
The flip-chip varies the bottom bracket height. It's 6mm lower in ST position versus LT position. Running the 4060 ST with the flip-chip in the LT setting raises the bottom bracket and gives you more ground clearance. However, running 4060 LT with the flip-chip in the ST setting could make the tire buzz the back of the seat tube, so don't try it.
This bike uses a PF92 press-fit bottom bracket, as Scor believes it's the best solution for a carbon frame. Allowing the company to achieve the desired fiber layup in the bottom bracket area. Also making for a stronger and stiffer frame.
Yes. Having a 27.5" rear wheel lowers the bottom bracket and slackens the seat tube and head tube angles. For ST, these effects can be compensated for by flipping the bottom bracket chip to the LT setting so the bottom bracket is raised. The flip-chip is already in the high position on LT. To raise the bottom bracket, adjust the headset to the steeper setting with the natch facing backward.
Yes. This bike was made to work with an air or coil or shock, so you can choose how you stay spring.
